Comparison of advantages and disadvantages of six commonly used water-cooled units
[Disclaimer]: The copyright of this official account article belongs to the original author, and the content is the author's personal opinion. If there is any infringement, please contact to delete it.

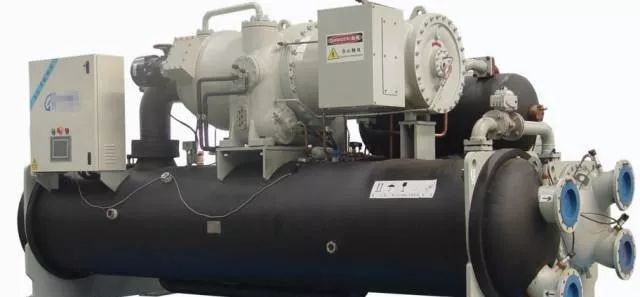

1. The materials are simple, common metal materials can be used, the processing is easy, and the cost is low;
2. The system is simple in installation, easy to lubricate, and does not require an exhaust device;
3. With multiple heads, high-speed and multiple cylinders, the performance can be improved.
Disadvantages:
1. There are many parts and wearing parts, the maintenance is complicated and frequent, and the maintenance cost is high;
2. The compression ratio is low, and the cooling capacity of a single machine is small
; 4.
It is a reciprocating motion up and down, and the vibration is large;
5. The weight index per unit cooling capacity is large.

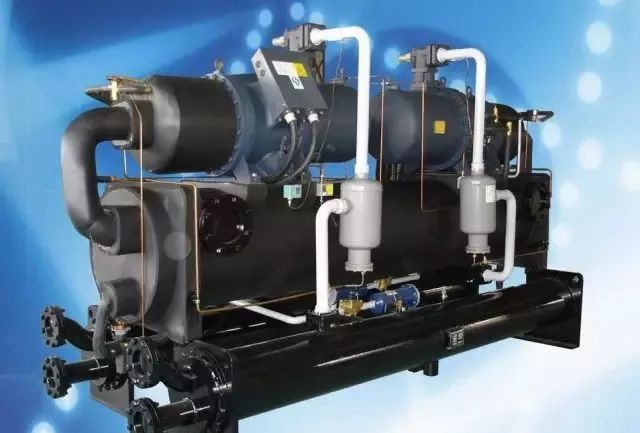

1. Simple structure, less moving parts, less wearing parts, only 1/10 of the piston type, low failure rate, long life;
2. Smooth circular motion, no "surge" phenomenon during low-load operation, noise Low vibration, low vibration;
3. The compression ratio can be as high as 20, and the EER value is high;
4. It is easy to adjust and can be adjusted steplessly in the range of 10%~100%, with high efficiency and significant power saving at partial load;
5. Small size, It is light in weight and can be used as a vertical fully enclosed large-capacity unit;
6. It is not sensitive to wet stroke;
7. It is a positive pressure operation, and there is no problem of external air intrusion and corrosion.
1. The price is higher than that of the piston type; 2.
The capacity of a single unit is smaller than that of the centrifugal type; .Requires high machining accuracy and assembly accuracy.

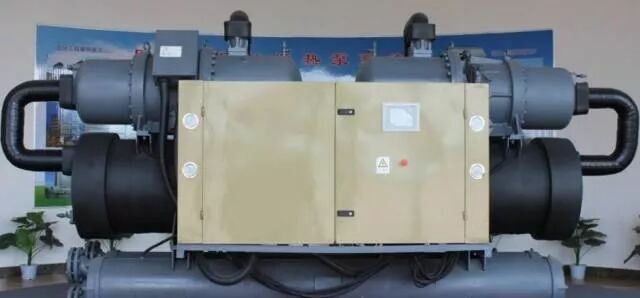

1. High impeller speed, large gas transmission capacity, and large single machine capacity;
2. Fewer wearing parts, reliable operation, compact structure, stable operation, low vibration and low noise;
3. Small weight index per unit cooling capacity;
4. No lubricating oil is mixed in the refrigerant, and the heat transfer performance of the evaporator and the condenser is good;
5. The EER value is high, the theoretical value can reach 6.99
;
Disadvantages:
1. The single-stage compressor will have a "surge" phenomenon at low load, and run smoothly at full load;
2. Strict requirements for material strength, machining accuracy and manufacturing quality;
3. When the operating conditions deviate from the design conditions When the efficiency drops faster, the cooling capacity decreases faster than the piston type with the decrease of the evaporating temperature;
4. Centrifugal negative pressure system, the outside air is easy to intrude, and there is a danger of chemical changes and corrosion of the pipeline.
1. It is an improved type of piston type and screw type, which is composed of multiple chiller units;
2. The unit is small in size, light in weight, low in height, and occupies a small area;
3. Simple installation, no need to reserve installation Holes are easy to combine on site, especially suitable for renovation projects.
Disadvantages:
1. The price is more expensive;
2. The number of modules should generally not exceed 8.
1. Energy saving, heat can be recovered during operation in winter;
2. It is derived from nature;
4. The installation is convenient and the maintenance cost is low;
5. The application is flexible and the adjustment is convenient.
Disadvantages:
1. The fresh air cannot be used to the maximum in the excessive season;
2. The unit is noisy.
1. Fewer moving parts, low failure rate, smooth movement, low vibration and low noise;
2. Simple processing, convenient operation, and can achieve 10%~100% stepless adjustment;
3. Lithium bromide solution is non-toxic and has no effect on the ozone layer Destructive effect;
4. The waste heat can be used. Waste heat and other low-grade heat energy;
5. Low operating cost and good safety;
6. Using heat energy as power, less electricity consumption.
Disadvantages:
1. The service life is shorter than that of the compression type; 2. The power saving is not energy saving ,
the steam consumption is large, and the thermal efficiency is low;
Strict requirements; sealing, which brings inconvenience to manufacture and use;
4. The heat discharge load of the unit is larger than that of the compression type, and the water quality of the cooling water is higher;
5. The lithium bromide solution is strongly corrosive to carbon steel, which affects the life and performance of the unit .
