Tube Ice Machine
- SMARTCOLD
- DALIAN, CHINA
- 45 DAYS
- 1 SET PER WEEK
Application field：
Food processing
Fishery processing
Meat processing
Supermarket and Logistic
Edible ice
Dye chemical industry
Concrete cooling industry
Product feature：

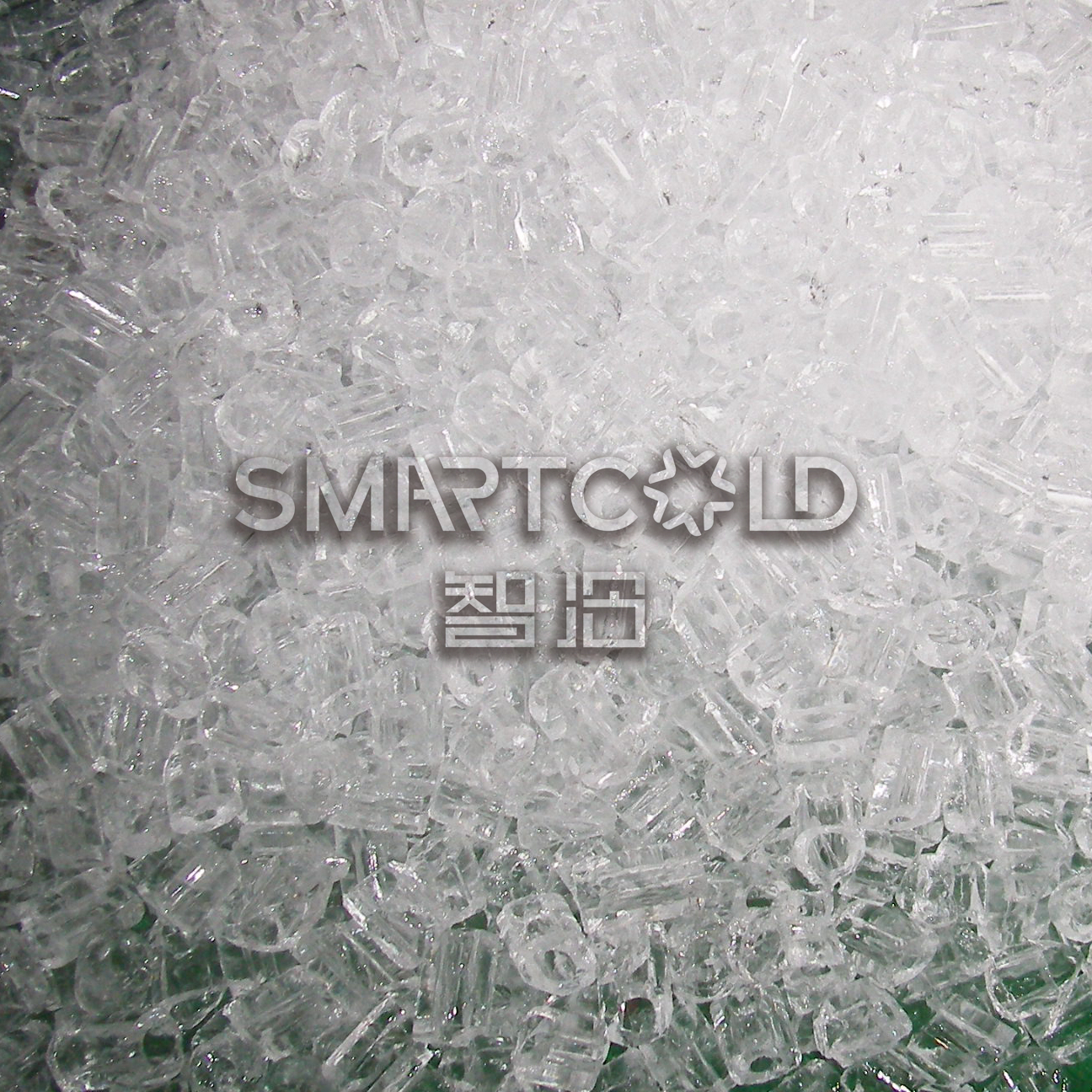

Special water system design to guarantee good ice quality, uniform thickness, transparent, impurity;
The design of ice evaporator is according to pressure vessel standard. It is strong , safte and reliable;
Adopt high efficiency heat transfer tube to optimize the design of refrigeration system . It is stable operation and low breakdown;
Adopt double circuit ice doffing type, ice doffing fast , system impact small, more efficient and more safe;
The exterior insulation structure of evaporator,anti-corrosion, more energy save and production;
The part contact with ice is stainless steel , safe and sanitary
Full-automatic control , auto ice full stop;
Variety of production specification, variety of tube size to fulfill to different application;
Have CE(PED)ASME certificate, high indemnificatory;
Can match stainless steel screw conveying buffer , and automatic storage, packaging production line;
Beautiful shape, overall layout is reasonable, comprehensive details, excellent.
Working condition：
Power supply: full electric system complying with the general international standard
Standard working condition of ice making: water supply temperature 20℃, ambient temperature 33℃
The applicable working condition: water supply temperature 0~35℃, ambient temperature 5~40℃
Refrigerant: R404A、R507A、R717
| Model | capacity φ22（Tons/day) | capacity φ29（Tons/day) | capacity φ38（Tons/day) | Necessary Refrigeration Capacity(kW) | Compressor Nominal Horsepower | Install Power (kW) | Running Power (kW) | Water Consumption (Tons/hr) | Water Recharge (Tons/hr) | Main Shaft Power (kW) | Water Pump Power (kW) | Running Weight (kg) |
| ZLT10 | 1.04 | 1 | 0.9 | 6 | 6 | 6.5 | 4 | 0.046 | - | 0.25 | 0.25 | 1240 |
| ZLT30 | 3.12 | 3 | 2.7 | 18 | 15 | 15 | 9 | 0.138 | 0.2 | 0.37 | 0.55 | 2000 |
| ZLT50 | 5.2 | 5 | 4.5 | 30 | 25 | 25 | 16 | 0.230 | 0.3 | 0.55 | 0.75 | 3500 |
| ZLT100 | 10.4 | 10 | 9 | 60 | 50 | 46 | 32 | 0.460 | 0.6 | 0.75 | 1.5 | 4500 |
| ZLT150 | 15.6 | 15 | 13.5 | 90 | 70 | 65 | 45 | 0.690 | 1 | 1.1 | 2.2 | 7000 |
| ZLT200 | 20.8 | 20 | 18 | 120 | 100 | 85 | 64 | 0.920 | 1 | 2.2 | 2.2 | 10000 |
| ZLT250 | 26 | 25 | 22.5 | 150 | 120 | 105 | 80 | 1.150 | 1.3 | 2.2 | 2.2 | 11500 |
| ZLT300 | 31.2 | 30 | 27 | 180 | 150 | 125 | 96 | 1.380 | 1.6 | 2.2 | 2.2 | 13000 |
| ZLT400 | 41.6 | 40 | 36 | 240 | 200 | 165 | 125 | 1.840 | 2 | 3 | 3 | 15000 |
| ZLT500 | 52 | 50 | 45 | 300 | 250 | 200 | 150 | 2.300 | 2.5 | 4 | 4 | 17000 |
| ZLT700 | 72.8 | 70 | 68 | 420 | 350 | 260 | 210 | 3.220 | 3.5 | 5.5 | 5.5 | 20000 |
Step 1, please tell us what model and quantity you need; Step 2, then we will make a Pl for you to confirm the order details; step 3, when we confirmed everything, can arrange the payment; step 4, finally we deliver the goods within the stipulated time....more
