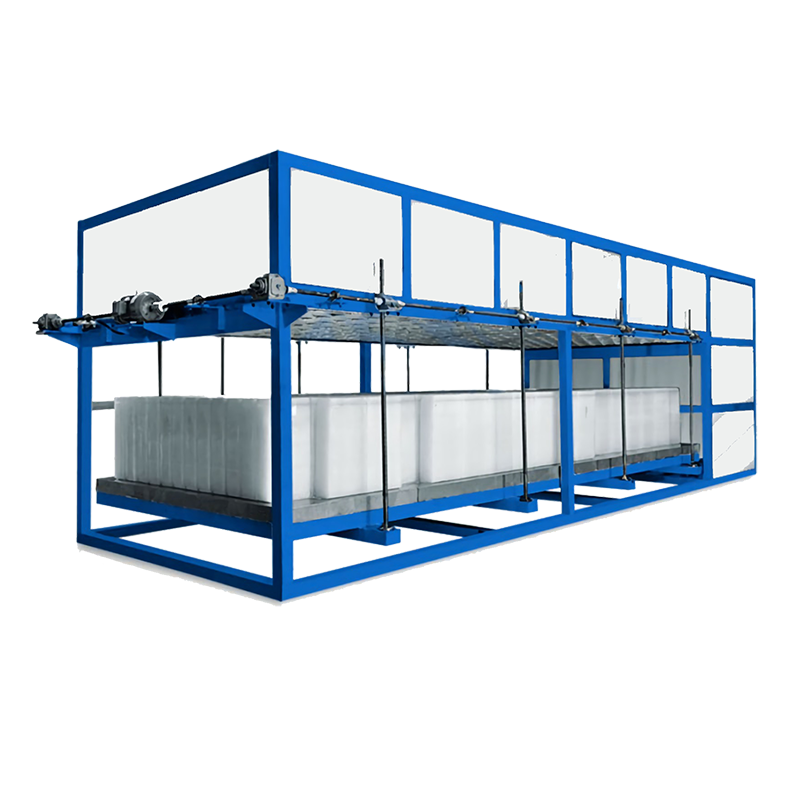

Direct Cooling Block Ice Machine
- SMARTCOLD
- DALIAN, CHINA
- 45 DAYS
- 1 SET PER WEEK
Ice factory at ports and docks
Fresh preservation and cooling of aquatic products
Fresh preservation of aquatic products and foods during line haul
Temperature reduction and cooling in specific fields
Ice sculpture
*Adopt time control, temperature control and timer control, automatic water supply, automatic ice-shedding.
*Large capacity, fast ice freezing time.
*Occupied less area, flexible moving.
*Easy operation, low risk, low cost.
*Block ice is clean and sanitary, and edible.
*Evaporated directly without salt water.
*Material of ice moulds use aluminum plate, ice making cycle is short.
Direct cooling ice block machine using the industry leading technology, through the refrigerant gas and water direct heat exchange, after a period of time water in the water tank eventually frozen into ice, then the control system will automatically turn to ice-shedding, which applied to hot fluorine ice-shedding, this kind way to ice-shedding become more fast. Aluminum plate material evaporator using special process to ensure that the block ice meet food demands, block ice can be eaten directly. In addition, compare to the traditional brine ice making system, the unique modular design to make ice block machine occupied much less area, saving manpower and electricity.
DIRECT COOLING ICE BLOCK MACHINE FEATURES
Adopt time control, temperature control and timer control, automatic water supply, automatic ice-shedding.
Large capacity, fast ice freezing time.
Occupied less area, flexible moving.
Easy operation, low risk, low cost.
Block ice is clean and sanitary, and edible.
Evaporated directly without salt water.
Material of ice moulds use aluminum plate, ice making cycle is short.
DIRECT COOLING ICE BLOCK MACHINE TECHNICAL PARAMETER
| Model | Capacity (Ton/Day) | Ref. capacity (KW) | Refrigerant | Rated Power (KW) | Rated current | Compressor Power (HP) | Weight of Block Ice (Kg) | ice cube temperature | Ice Harvest Way |
| ZLZB10 | 1 | 7.5 | R22/R407 | 6 | 11 | 6 | 25/50 | -8 | Manual Forklift |
| ZLZB20 | 2 | 15.6 | R22/R407 | 10 | 18 | 10 | 25/50 | -8 | Manual Forklift |
| ZLZB30 | 3 | 22.4 | R22/R407 | 14 | 28 | 15 | 25/50 | -8 | Manual Forklift |
| ZLZB50 | 5 | 43.3 | R22/R407 | 25 | 36 | 25 | 25/50 | -8 | Elevating |
| ZLZB100 | 10 | 86.6 | R22/R407 | 50 | 91.5 | 50 | 25/50 | -8 | Elevating |
| ZLZB150 | 15 | 118.2 | R22/R407 | 75 | 140 | 80 | 25/50 | -8 | Elevating |
| ZLZB200 | 20 | 155.7 | R22/R407 | 105 | 180 | 100 | 25/50 | -8 | Elevating |
| ZLZB250 | 25 | 199.2 | R22/R407 | 120 | 214 | 120 | 25/50 | -8 | Elevating |
Step 1, please tell us what model and quantity you need; Step 2, then we will make a Pl for you to confirm the order details; step 3, when we confirmed everything, can arrange the payment; step 4, finally we deliver the goods within the stipulated time....more
