170 Series Reciprocationg Compressor Unit
- SMARTCOLD
- DALIAN, CHINA
- 45 DAYS
- 1 SET PER WEEK
Adopt Y series of high efficiency energy-saving motors, protection class IP23/IP54/IP55
Unit is with high speed, small size and interchangeable parts
Compressor shaft seal and gasket are import brand.
Provided energy adjustment device to realize unit start without load
Equipped with three-way oil drainage valve. Oil can be charged during normal operation
Safe and reliable operation

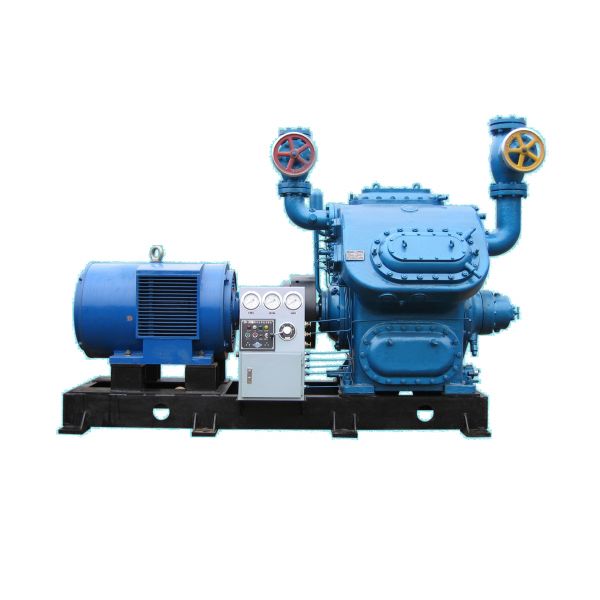

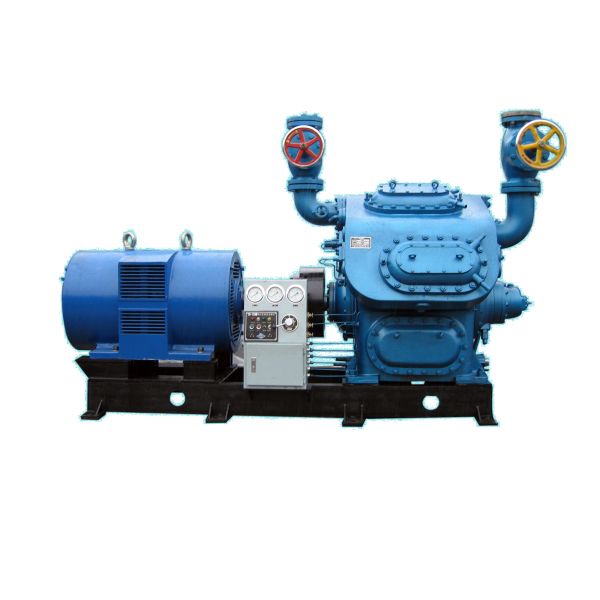

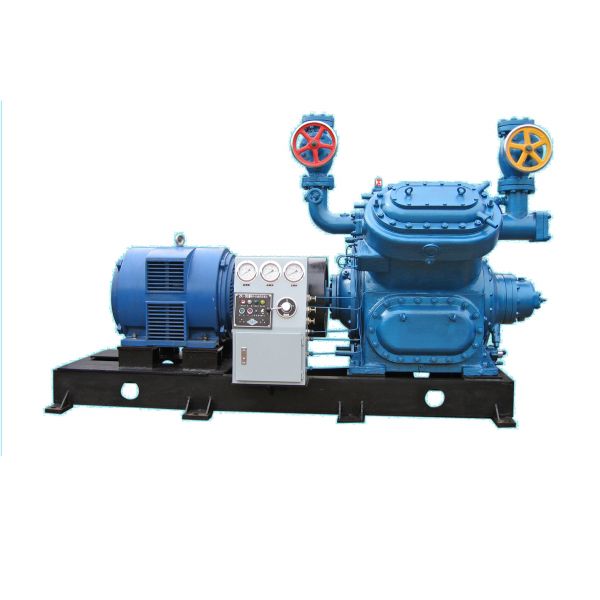

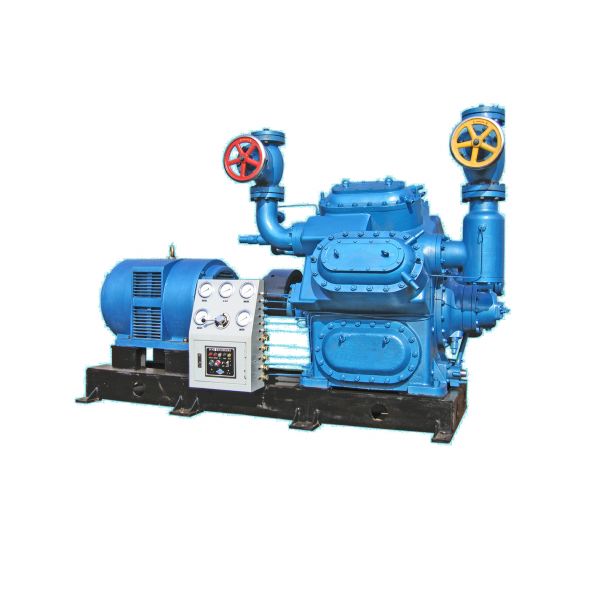

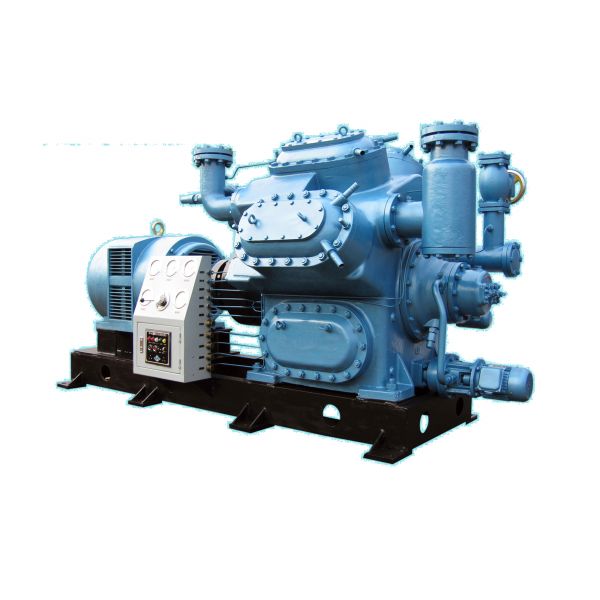

170 Series Reciprocating Refrigeration Compressor Units
The series units come from the 170 series ammonia compressor units. The units adopt Y series high-efficient energy-saving electric motor with the protection class of IP23. Therefore, besides running at high velocity, small volume, parts is easy to interchange, starting with empty load and charging oil while running like the 170 series units, the units feature higher efficient, more energy-saving, smaller area to place and higher liabilities.
This series compressors is suitable for all kinds of refrigeration conditions with condensing temperature less than 46oC, single stage evaporating temp +5~-30oC, two stage evaporating temp -25~-45oC.
Ammonia and Freon can be both adopted as refrigerant of compressor, different revolutions can be designed in accordance with client’s exact requirements. All the data in this catalog is based on ammonia compressor.
| 型号 Model | 4AV17 | 6AW17 | 8AS17 | 4ASJ17 | 8ASJ17 | |||
| 机组 Unit | 制冷量 Refrigeration Capacity | 标准工况 Standard Condition | kW | 256 | 384 | 512 | 81.4 | 163 |
| 空调工况 Air Conditioning Condition | 558 | 840 | 1116 | |||||
| 轴功率 Shaft Power | 标准工况 Standard Condition | kW | 71.9 | 107.1 | 142 | 42.75 | 83.9 | |
| 空调工况 Air Conditioning Condition | 107 | 160 | 213 | |||||
| 压缩机 Compressor | 活塞行程容积 Theoretical Displacement | m3/h | 550 | 825 | 1100 | 137(412) | 275(825) | |
| 能量调节范围 Capacity Regulating Range | 0.1/2,1 | 0,1/3,273,1 | 0.1/4.1/2,3/4,1 | 0,1/3.2/3,1 | 0,1/3,2/3,1 | |||
| 进气管径 Suction Pipe Dia. | mm | 100 | 125 | 150 | 65(100) | 80(125) | ||
| 排气管径 Discharge Pipe Dia. | mm | 80 | 100 | 125 | 65(80) | 65(100) | ||
| 冷却水耗量 Cooling Water Consumption | kg/h | 2000 | 3000 | 4000 | 1500 | 2000 | ||
| 电机 Motor | 功率 Power | 标准工况 Standard Condition | kW | 95 | 132 | 190 | 70 | 132 |
| 空调工况 Air Conditioning Condition | kW | 132 | 190 | 250 | ||||
| 电压 Voltage | 标准工况 Standard Condition | V | 380 | 380 | ||||
| 空调工况 Air Conditioning Condition | V | 380 | ||||||
| 转数 Revolution | 标准工况 Standard Condition | r/min | 750 | 750 | ||||
| 空调工况 Air Conditioning Condition | r/min | 750 | ||||||
| 外型尺寸(长X宽X高) Outline (LXWXH) | 标准工况 Standard Condition | mm | 2730x1273x1653 | 2923x1465x1939 | 3074x1550x1971 | 2586x1579x1721 | 2901x1546x1816 | |
| 空调工况 Air Conditioning Condition | mm | 2781x1273x1653 | 3023x1465x1939 | 3144x1550x1971 | ||||
| 机组重量 Unit Weight | 标准工况 Standard Condition | kg | 5080 | 5500 | 6040 | 4320 | 5850 | |
| 空调工况 Air Conditioning Condition | kg | 5160 | 5570 | 6190 | ||||
