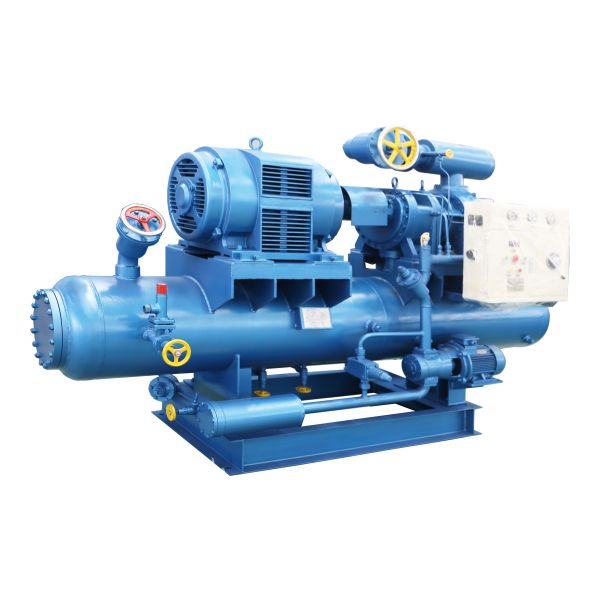

Screw Compressor Unit

Brand SMARTCOLD
Product origin DALIAN, CHINA
Delivery time 45 DAYS
Supply capacity 1 SET PER WEEK

Widely used in food refrigeration and freezing, aquaculture, commercial, petroleum, chemical industry, coal, textiles, pharmaceuticals, shipbuilding, defense and scientific research in all aspects of needs artificial refrigeration.

Email

High Reliability

*Sliding bearing, long operating life one chiller, which can

*Less wearing parts, smooth operation, suitable for long-term operation

High efficiency

*Low exhaust temperature, high volumetric efficiency

*World's leading screw compressor rotor profile, high efficiency

*Energy steeples adjustment

Intellectualized

*Manual control and microcomputer automatic control

*Have features of fast running speed, strong control capability. And realize modularization and networking

机组型号 Unit Model LG				12.5	12.5F	16	16F	20	20F	25	25F	31.5	31.5F
制冷剂 Refrigerant				R717	R22	R717	R22	R717	R22	R717	R22	R717	R22
机组 Unit	制冷量 Refrigeration Capacity	空调工况 Air Conditioning Condition	kW	307.1	278.2	650.5	591.2	1385.2	1258.9	2760.4	2508.4	5431.6	4935.8
		标准工况 Standard Condition		148.1	147.9	315.7	314.3	672.3	669.3	1339.9	1333.7	2636.5	2624.4
		低温工况 Low Temperature Condition		53.4	56.9	113.5	121	242.3	258.2	483.3	515.2	951.3	1014
		低温工况带经济器 Low Temp. Cond. With Economizer		63.8	75.3	135.7	159.7	289.4	340.2	577.3	677	1136.5	1339.4
	轴功率 Shaft Power	空调工况 Air Conditioning Condition	kW	55.3	52.7	116.5	111	245.2	233.5	487.7	464.4	959.1	913.2
		标准工况 Standard Condition		39.5	41.1	83.2	86.6	175.1	182.2	348.3	362.3	584.9	712.5
		低温工况 Low Temperature Condition		34.8	36.9	73.1	77.6	153.5	163.1	305.6	324.6	601	638.4
		低温工况带经济器 Low Temp. Cond. With Economizer		35.5	39.5	74.6	83	156.5	174.1	308.8	343.3	606.1	675.2
	吸气管管径 Suction Pipe Diameter		mm	100		100		150		200		300
	排气管管径 Exhaust Pipe Diameter		mm	65		80		100		150		200
	机组外形尺寸(长X宽X高) Outline (LXWXH)		mm	2770x1200x1850		2965x1355x1920		3610x1520x2280		4855x1975x3070		5930x2300x3350
	重量（约） Weight（About）	空调工况 Air Conditioning Condition	kg	2240		2860		5850		11000		17200
		标准工况 Standard Condition				2920		5690		10900		16600
		低温工况 Low Temperature Condition						5620
压缩机 Compressor	理论输气量 Theory Gas Transmission Rate		m³/h	276		580		1215		2395		4700
	能量调节范围 Energy Adjustment Scope		%	10 — 100 无级调节 Stepless adjustment
主电动机 Main Motor	额定功率 Rated Power	空调工况 Air Conditioning Condition	kW	65		125		250		560		1250
		标准工况 Standard Condition		55		100		220		450		900
		低温工况 Low Temperature Condition						200
	电制 Power Standard			3P, 50Hz, 380V				3P, 50Hz, 380V/6kV/10kV
油泵 Oil Pump	电动机功率 Motor Power		kW	2.2		3				5.5		11
油冷却器 Oil Cooler	水冷 Water-Cooled	进水温度 Water Inlet Temp.	℃	≤32
		进出水管径 Inlet/Outlet Water Pipe Diameter	mm	32		32		65		65		100
		最大循环水量 The Largest Circulating Water	m³/h	7	5	12	8	25	17	51	35	97	75
	工质冷 Refrigerant- Cooled	进液口管径 Inlet Pipe Diameter	mm	20		32		40		65
		出气口管径 Outlet Pipe Diameter	mm	32		50		65		100

FAQ

How To Order ?
Step 1, please tell us what model and quantity you need; Step 2, then we will make a Pl for you to confirm the order details; step 3, when we confirmed everything, can arrange the payment; step 4, finally we deliver the goods within the stipulated time....more
